Access Cloud and Aerosol Lidar CALIPSP Data from NASA Earthdata

Access Cloud and Aerosol Lidar CALIPSP Data from NASA Earthdata#

CAL_LID_L2_01kmCLay-Standard-V5-00 is the Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observation (CALIPSO) Lidar Level 2 1 km Cloud Layer data product. This data product was collected using the Cloud-Aerosol Lidar with Orthogonal Polarization (CALIOP) instrument. Within this cloud layer product, generated at a horizontal resolution of 1 km, are two general classes of data: Column Properties (including position data and viewing geometry) and Layer Properties. The cloud layer products consist of a sequence of column descriptors, each associated with a variable number of cloud layer descriptors. Source: NASA Earthdata.

Requirements#

EDL authentication (username/password)
Get environment.yml file and install conda environment to run notebook.
pydap>=3.5.9

Objectives#

Subset a remote file#

a) By Variables
b) By Spatial selection
c) Daytime-only data

Subset multiple remote files#

Stream subset of data into local workstation

References#

Getzewich, B. (2025). CALIPSO Lidar Level 2 1 km Cloud Layer, V5-00 [Data set]. NASA Langley Atmospheric Science Data Center Distributed Active Archive Center. https://doi.org/10.5067/CALIOP/CALIPSO/CAL_LID_L2_01KMCLAY-STANDARD-V5-00

import xarray as xr
import datetime as dt
import earthaccess
import matplotlib.pyplot as plt
import numpy as np

# import pydap-specific tools
from pydap.client import get_cmr_urls, open_url
from pydap.client import to_netcdf as dap_to_netcdf

Finding OPeNDAP URLs#

Query opendap urls using NASA’s CMR API#

We query NASA’s CMR to identify remote files that intersect the following geographical area (bounding box) covering the following time range

-121 < longitude < -115, and 26.5 < latitude < 31
2 years of only spring time data: March 1st to May 31st (2022-2023).

Lasly, we are ONLY interested in Daytime data.

Calipso_L2_ccid = "C3463063995-LARC_CLOUD" #
bbox = [-121,26.5,-115,31] # [west, south, east, north]

# 2 years of March data
time_ranges = [[dt.datetime(year, 3, 1), dt.datetime(year, 5, 31)] for year in range(2022, 2024)]

CMR_URLs = []
args = {
    "ccid": Calipso_L2_ccid,
    "bounding_box": bbox,
    "limit": 1000,
}
cmr_urls = [url for time_range in time_ranges for url in get_cmr_urls(**args, time_range=time_range)] # you can increase the limit of results

print("################################################ \n We found a total of ", len(cmr_urls), "OPeNDAP URLS!!!\n################################################")

################################################
 We found a total of  90 OPeNDAP URLS!!!
################################################

EDL Authentication via earthaccess and OPeNDAP#

You can authenticate via earthaccess as demonstrated below. You must have a valid EDL account. There are two strategies for authenticating with earthaccess:

strategy="interactive". This will promt your edl username-password.
strategy="netrc". Use this if the notebook is running on an environment where a .netrc with your credentials is recoverable. T

Below the default will be netrc, assuming the user has executed the notebook Authenticate.ipynb. If not, you can change the strategy to "interactive".

from earthaccess.exceptions import LoginStrategyUnavailable
try:
    auth = earthaccess.login(strategy="netrc", persist=True) # you will be promted to add your EDL credentials
except LoginStrategyUnavailable:
    auth = earthaccess.login(strategy="interactive", persist=True)

# pass Token Authorization to a new Session.
my_session = session=auth.get_session()

Accessing Metadata-ONLY with PyDAP#

We can access OPeNDAP-produced metadata to identify the variables of interest. In particular those associated with latitude and longitude values

%%time
pyds = open_url(cmr_urls[0], protocol="dap4", session=my_session)
pyds.tree()

.CAL_LID_L2_01kmCLay-Standard-V5-00.2022-03-02T10-34-17ZN.hdf
├──Lidar_Surface_Detection
│  ├──Surface_Top_Altitude_532
│  ├──Surface_Base_Altitude_532
│  ├──Surface_Integrated_Attenuated_Backscatter_532
│  ├──Surface_532_Integrated_Depolarization_Ratio
│  ├──Surface_532_Integrated_Attenuated_Color_Ratio
│  ├──Surface_Detection_Flags_532
│  ├──Surface_Overlying_Integrated_Attenuated_Backscatter_532
│  ├──Surface_Scaled_RMS_Background_532
│  ├──Surface_Peak_Signal_532
│  ├──Surface_Detections_333m_532
│  ├──Surface_Top_Altitude_1064
│  ├──Surface_Base_Altitude_1064
│  ├──Surface_Integrated_Attenuated_Backscatter_1064
│  ├──Surface_1064_Integrated_Depolarization_Ratio
│  ├──Surface_1064_Integrated_Attenuated_Color_Ratio
│  ├──Surface_Detection_Flags_1064
│  ├──Surface_Overlying_Integrated_Attenuated_Backscatter_1064
│  ├──Surface_Scaled_RMS_Background_1064
│  ├──Surface_Peak_Signal_1064
│  └──Surface_Detections_333m_1064
├──Ocean_Derived_Column_Optical_Depth
│  ├──ODCOD_Effective_Optical_Depth_532
│  ├──ODCOD_Effective_Optical_Depth_532_Uncertainty
│  ├──ODCOD_QC_Flag_532
│  ├──ODCOD_Surface_Wind_Speeds_10m
│  └──ODCOD_Surface_Wind_Speed_Correction
├──Lidar_Data_Altitudes
├──Profile_ID
├──Latitude
├──Longitude
├──Profile_Time
├──Profile_UTC_Time
├──Day_Night_Flag
├──Off_Nadir_Angle
├──Solar_Zenith_Angle
├──Solar_Azimuth_Angle
├──Scattering_Angle
├──Spacecraft_Position
├──Parallel_Column_Reflectance_532
├──Parallel_Column_Reflectance_Uncertainty_532
├──Perpendicular_Column_Reflectance_532
├──Perpendicular_Column_Reflectance_Uncertainty_532
├──Column_Integrated_Attenuated_Backscatter_532
├──Column_IAB_Cumulative_Probability
├──Column_Particulate_Optical_Depth_Above_Opaque_Water_Cloud_532
├──Column_Particulate_Optical_Depth_Above_Opaque_Water_Cloud_Uncertainty_532
├──Tropopause_Height
├──Tropopause_Temperature
├──IGBP_Surface_Type
├──Snow_Ice_Surface_Type
├──DEM_Surface_Elevation
├──Minimum_Laser_Energy_532
├──Low_Energy_Mitigation_Column_QC_Flag
├──Number_Layers_Found
├──Scene_Flag
├──Low_Energy_Mitigation_Feature_QC_Flag
├──Layer_Top_Altitude
├──Layer_Base_Altitude
├──Layer_Top_Pressure
├──Midlayer_Pressure
├──Layer_Base_Pressure
├──Layer_Top_Temperature
├──Layer_Centroid_Temperature
├──Midlayer_Temperature
├──Layer_Base_Temperature
├──Opacity_Flag
├──Attenuated_Scattering_Ratio_Statistics_532
├──Attenuated_Backscatter_Statistics_532
├──Integrated_Attenuated_Backscatter_532
├──Integrated_Attenuated_Backscatter_Uncertainty_532
├──Attenuated_Backscatter_Statistics_1064
├──Integrated_Attenuated_Backscatter_1064
├──Integrated_Attenuated_Backscatter_Uncertainty_1064
├──Volume_Depolarization_Ratio_Statistics
├──Integrated_Volume_Depolarization_Ratio
├──Integrated_Volume_Depolarization_Ratio_Uncertainty
├──Attenuated_Total_Color_Ratio_Statistics
├──Integrated_Attenuated_Total_Color_Ratio
├──Integrated_Attenuated_Total_Color_Ratio_Uncertainty
├──Overlying_Integrated_Attenuated_Backscatter_532
├──Layer_IAB_QA_Factor
├──Feature_Classification_Flags
├──CAD_Score
├──Initial_CAD_Score
├──metadata.Product_ID
├──metadata.Date_Time_at_Granule_Start
├──metadata.Date_Time_at_Granule_End
├──metadata.Date_Time_of_Production
├──metadata.Number_of_Good_Profiles
├──metadata.Number_of_Bad_Profiles
├──metadata.Initial_Subsatellite_Latitude
├──metadata.Initial_Subsatellite_Longitude
├──metadata.Final_Subsatellite_Latitude
├──metadata.Final_Subsatellite_Longitude
├──metadata.Orbit_Number_at_Granule_Start
├──metadata.Orbit_Number_at_Granule_End
├──metadata.Orbit_Number_Change_Time
├──metadata.Path_Number_at_Granule_Start
├──metadata.Path_Number_at_Granule_End
├──metadata.Path_Number_Change_Time
├──metadata.Lidar_L1_Production_Date_Time
├──metadata.Number_of_Single_Shot_Records_in_File
├──metadata.Number_of_Average_Records_in_File
├──metadata.Number_of_Features_Found
├──metadata.Number_of_Cloud_Features_Found
├──metadata.Number_of_Aerosol_Features_Found
├──metadata.Number_of_Indeterminate_Features_Found
├──metadata.Ocean_Fresnel_Reflection_Coefficient_532
├──metadata.MERRA2_Wind_Uncertainty
├──metadata.AMSR_Wind_Correction_Uncertainty
├──metadata.Lidar_Data_Altitudes
├──metadata.GEOS_Version
├──metadata.GMAO_Files_Used
├──metadata.Classifier_Coefficients_Version_Number
├──metadata.Classifier_Coefficients_Version_Date
└──metadata.Production_Script
CPU times: user 145 ms, sys: 7.53 ms, total: 153 ms
Wall time: 3.02 s

Download minimal variables to identify spatial subset and daytime data#

Coordinates are have (fully qualifying names):

Latitude

Longitude

Day_Night_Flag

Before donwloading, we need to idenfity any dimension that is also an array of the dataset

(There can also be Named dimensions, i.e. dimensions that are only named and that are NOT

associated with any data. We do not need to declare those Variables)

DIMS = list(set(pyds['Latitude'].dims + pyds['Longitude'].dims + pyds['Day_Night_Flag'].dims))
dims = [dim for dim in DIMS if dim.split("/")[-1] in pyds[("/").join(DIMS[1].split('/')[:-1])].variables()]
print("Dimensions that are also arrays: ", dims)

Dimensions that are also arrays:  []

output_path = "./data/"

Stream data#

%%time
dap_to_netcdf(cmr_urls, session=my_session,
              keep_variables = ["/Longitude", "/Day_Night_Flag"],
              output_path=output_path)

CPU times: user 171 ms, sys: 268 ms, total: 439 ms
Wall time: 17.7 s

Inspect all downloaded files#

Here, we further identify the subset of data needed on the remote file, that will return ONLY data within our bounding box, for any possible variable of interest.

# Get data from Bounding Box
minLon, maxLon = bbox[0], bbox[2]

slices=[]
final_urls = []
for url in cmr_urls:
    filename = output_path+f"{url.split('/')[-1][:-4]}.nc4"
    dt1 = xr.open_datatree(filename).load()
    daytime_flag = dt1['Day_Night_Flag']
    # find index /data_01/longitude
    longitude = dt1['/Longitude']
    mask = (longitude >= minLon) & (longitude <= maxLon)
    idx = np.nonzero(mask.values)[0]
    daytime_flag = dt1['Day_Night_Flag'].isel(Record_Number=slice(idx[0], idx[-1]))==1
    if all(daytime_flag==0):
        final_urls.append(url)
        slices.append({"/Record_Number":(idx[0], idx[-1])})

print(f"\nOnly {len(final_urls)} out of the {len(cmr_urls)} remote files satisfy our Daylight Criteria\n")
print("Sample subsetting slices:")
slices[:4]

Only 42 out of the 90 remote files satisfy our Daylight Criteria

Sample subsetting slices:

[{'/Record_Number': (np.int64(11471), np.int64(14314))},
 {'/Record_Number': (np.int64(14165), np.int64(16225))},
 {'/Record_Number': (np.int64(12422), np.int64(14979))},
 {'/Record_Number': (np.int64(10329), np.int64(13187))}]

Inspect Visually the slice to subset#

# Subset data
Lon = dt1['Longitude'].isel(Record_Number=slice(idx[0], idx[-1]))

# Generate masked data to visualize only

Lon_masked = xr.full_like(dt1['Longitude'], np.nan)
Lon_masked.loc[dict(
    Record_Number = Lon['Record_Number'] + idx[0]
)] = Lon

# Visualize: Plot subset of data over original data
fig, axes = plt.subplots(figsize=(10,4))
dt1['Longitude'].plot(lw=5, color='k', alpha=0.75);
Lon_masked.plot(lw=10, color="#7f00ff")
axes.set_title(r"Longitude Subset $[^\circ$E]")
plt.show()

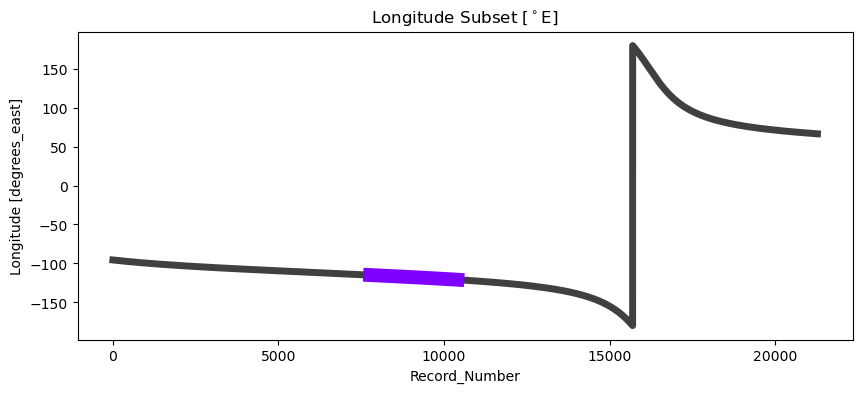

../_images/0c16e039be6e503e8657e50bd5b7bb3564f9aadb2e4bcfb8ba7941a726ff75d4.png

Download all data of interest#

FIRST: We need to erase all previously downloaded files, to avoid filename collision

import os
import glob

fnames = [output_path+f"{fname.split('/')[-1][:-4]}.nc4" for fname in cmr_urls]
for filename in fnames:
    try:
        os.remove(filename)
    except FileNotFoundError:
        print(f"The file '{filename}' is not in there anymore")

# Will Download 34 Variables!
keep_variables = [
    '/Lidar_Surface_Detection', # <----- ALL Variables inside Group
    "/Ocean_Derived_Column_Optical_Depth", # < -- All varibles inside Group
    "/Lidar_Data_Altitudes", "/Profile_ID", "/Latitude", "/Longitude",
    "/Profile_Time", "/Profile_UTC_Time", "/Day_Night_Flag", "/Tropopause_Height",
    "/Tropopause_Temperature",
]

%%time
dap_to_netcdf(final_urls, session=my_session,
              keep_variables = keep_variables,
              dim_slices = slices,
              output_path=output_path)

CPU times: user 85.6 ms, sys: 262 ms, total: 348 ms
Wall time: 50.5 s
